Proaction Alignment System

The most cost effective PRECISION ALIGNMENT SYSTEM available today.

For decades Greg Buscarello has taught precision alignment, focusing on the details that can mean the difference between mediocre results and true precision alignment. These best practices drove the design and features of the Proaction Alignment System. Rugged, precise quality, and easy to use, the Proaction Alignment System is the premium dial indicator alignment system.

DEPENDABLE, STABLE, HIGH QUALITY FIXTURES:

Making the difference between frustration, confusion & errors and achieving truly precision alignment.

CAN BE USED IN A WIDE RANGE OF APPLICATIONS:

From tight clearances to large heights and spans.

QUICK & EASY TO SET UP:

Fixtures come mostly assembled right from the case and in most situations they can be used with just a few adjustments. The bases are attached with a quick-release chain grip. A bubble level helps the user know when the dials are at the proper angle of rotation. Additional lengths of chain allow mounting on virtually any sized shaft, and an array of post, tube and extension sizes provides a wide range of heights and spans for use on both large and small machines.

THE PROACTION ALIGNMENT SYSTEM

BASIC

Includes everything needed to measure shaft alignment using the reverse indicator method. The fixtures can easily be reconfigured to perform the Rim and Face alignment method if necessary*.

PRO

Fits an even wider range of machines and includes all the tools that may be needed for the complete job: a digital infrared thermometer for determining thermal growth, 2 large dial indicators, 2 magnetic bases, test dial indicator, set of feeler gauges, tape measure, mirror, flashlight, wire brush, and spare parts all in a convenient rugged case.

Minimum Span: 5.25” Maximum span Proaction System: 23.5”; Basic: 16”

MORE STABLE, REPEATEDLY ACCURATE AND THE LOWEST INDICATOR BAR SAG IN THE INDUSTRY:

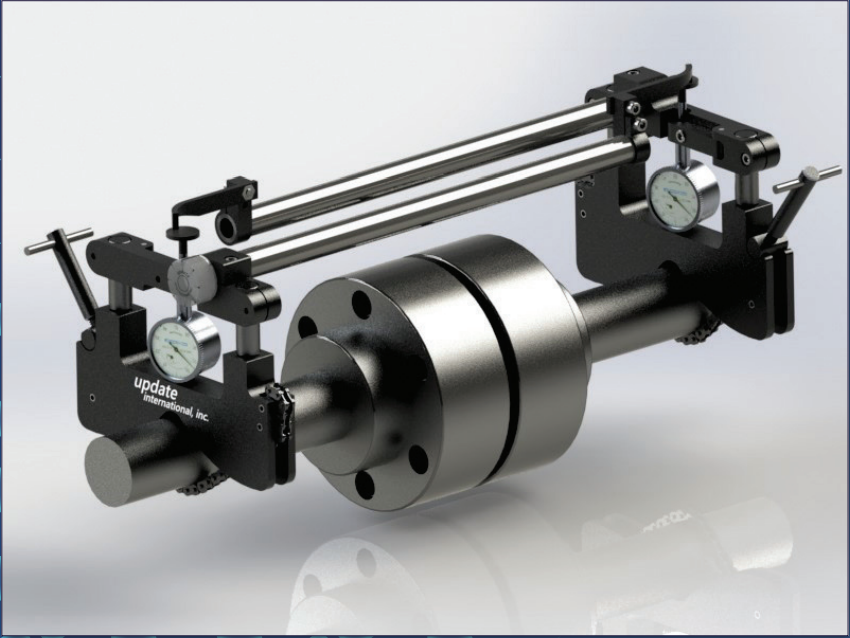

Keeping the flexing due to gravity of any alignment fixture system to minimum is very important. That’s why with the Proaction design the dial indicators are connected to the base, not to the end of the indicator bar. The indicator “bars” are made of stainless steel tubing, which is both strong and lightweight, providing greater stability and repeatability, even over large spans. The Proaction alignment fixtures have the lowest sag of any indicator kit on the market. The less sag, the more repeatability. The mounting of the dials insures that they are perpendicular to the shaft for better accuracy & centered in the fixture to make dimensions easier to measure.

Minimum radius of shaft to clearance: 3.75”
Maximum radius of coupling over shaft
Proaction System: 11.5”; Basic: 8.25”. Add 1.5” for required clearance.
